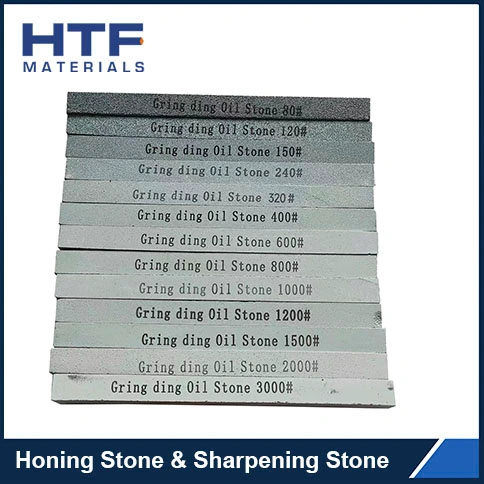

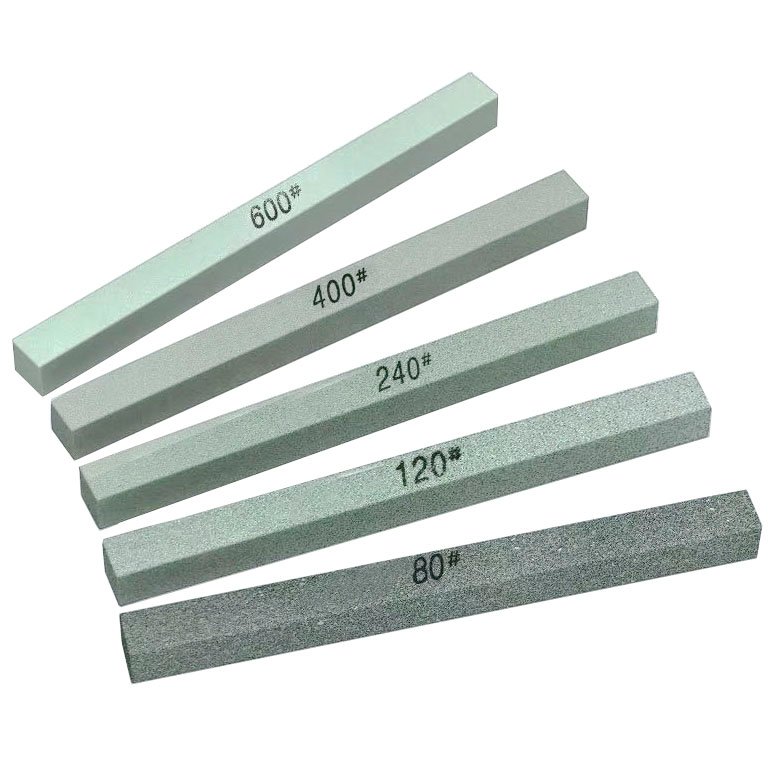

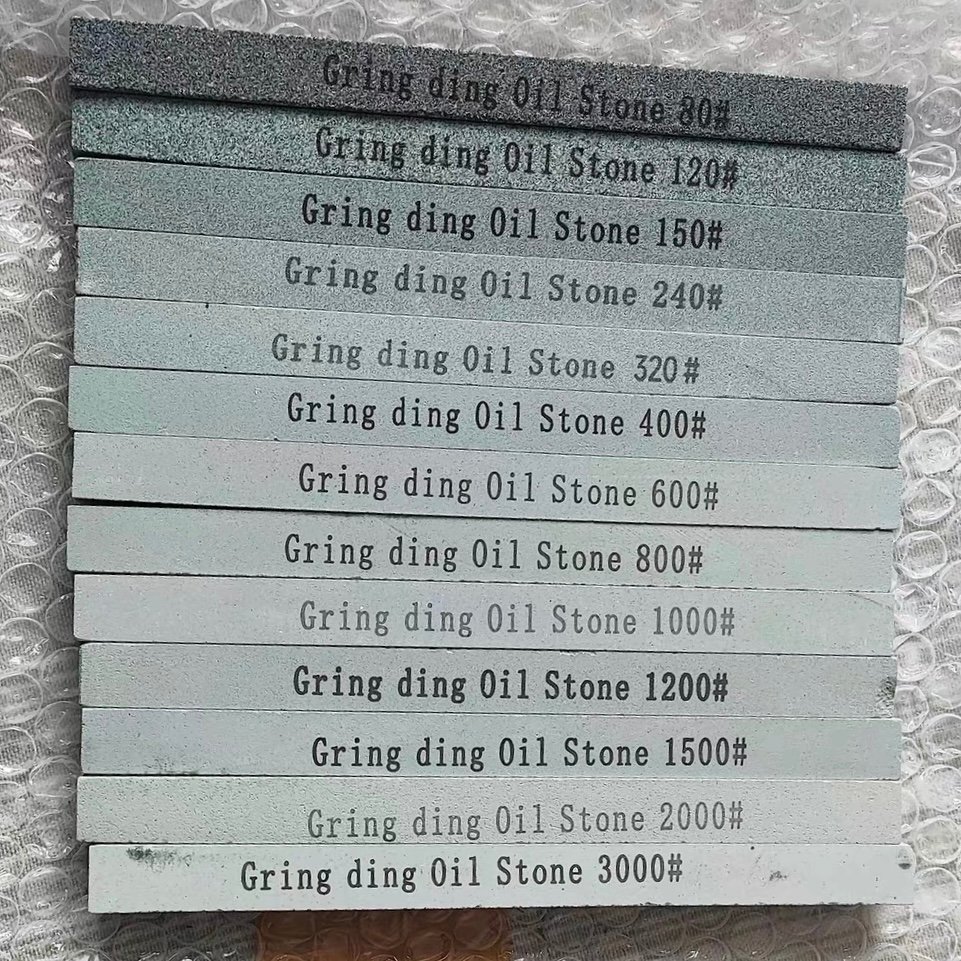

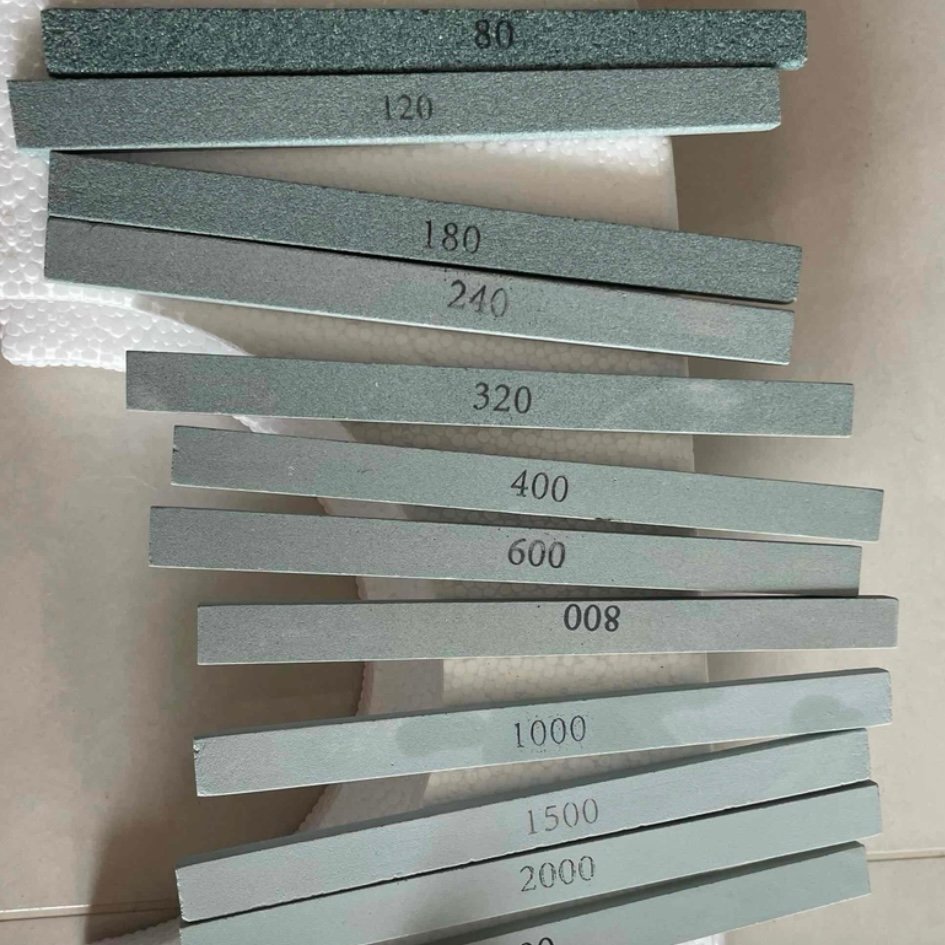

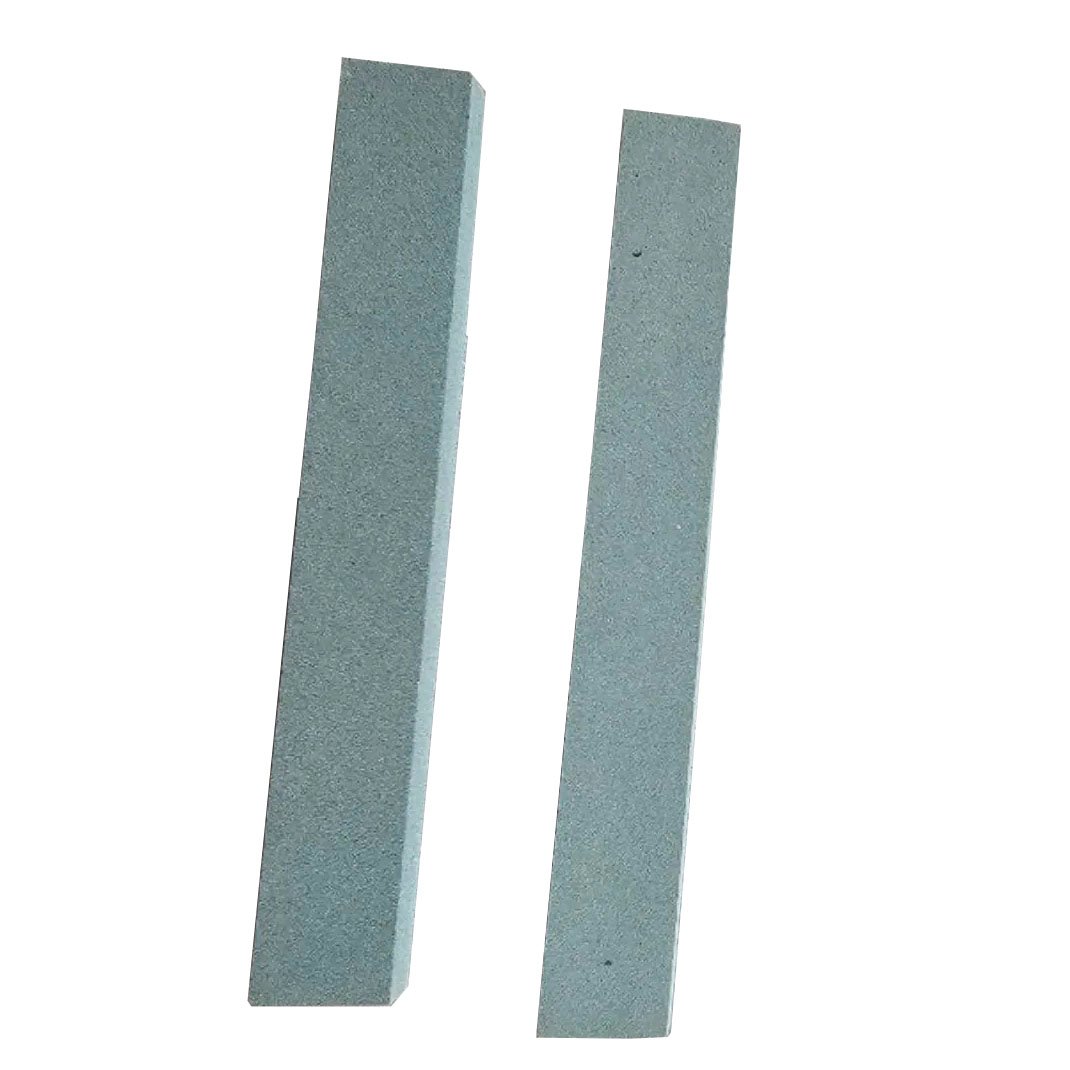

Product Description of Cylinder Honing Stone
Cylinder Honing Stones are manufactured using high-purity green silicon carbide abrasive, which offers excellent hardness and sharp cutting characteristics. Compared with conventional aluminum oxide abrasives, green silicon carbide provides faster cutting action and finer surface finishing, especially for hard and brittle materials.
Therefore, these honing stones are widely used in precision honing applications requiring tight dimensional tolerance and smooth surface roughness.
In addition, the stones maintain stable cutting performance during long production runs, helping improve machining efficiency while reducing tooling wear.
Features
- Sharp and aggressive cutting performance
- Excellent self-sharpening ability
- High hardness and wear resistance
- Stable honing efficiency
- Fine surface finishing
- Suitable for precision internal bore honing
- Long service life
- OEM & custom sizes available
Applications
Widely used for:
- Engine cylinder honing
- Hydraulic cylinder finishing
- Carbide component processing
- Stainless steel honing
- Ceramic and glass finishing
- Precision bore machining
- Automotive engine rebuilding
- Industrial machinery maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Abrasive Material | Green Silicon Carbide |
| Bond Type | Vitrified / Resin |
| Grit Range | 60# – 600# |
| Hardness | Soft / Medium / Hard |
| Shape | Cylindrical / Rectangular |
| Application Material | Carbide, Stainless Steel, Ceramic, Glass |
| Customization | Available |
| OEM Service | Supported |
Common Sizes
| Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|
| 50 | 6 | 6 |
| 75 | 6 | 6 |
| 100 | 6 | 6 |
| 100 | 10 | 10 |
| 150 | 10 | 10 |
| 150 | 13 | 13 |
| 150 | 25 | 13 |
| 200 | 13 | 13 |
| 200 | 25 | 13 |
| 300 | 25 | 13 |
| Custom | Custom | Custom |
Common Grits
| Application | Recommended Grit |
|---|---|
| Rough Honing | 60# – 100# |
| Semi-Finishing | 120# – 180# |
| Fine Finishing | 320# – 600# |
Advantages
Because of the excellent sharpness of green silicon carbide abrasive, the honing stones can achieve faster material removal and better surface consistency.
As a result, customers can benefit from:
- Improved dimensional accuracy
- Better surface roughness
- Reduced machining heat
- Higher production efficiency
- Longer honing stone lifespan
Packaging
- Standard export carton
- Wooden case available
- OEM label customization supported
Why Choose Us
- Professional abrasive manufacturer
- Stable product quality
- Fast delivery time
- OEM & customized solutions
- Rich export experience
- Technical support available
